Origami Test Tube Rack

At TENAK we have developed a test tube rack for test tubes in a range from a diameter of 12.5mm to 30mm. Our Origami Tube Rack is a whole new way of exploiting the combination of design and functionality.

5 racks per package – easy to assemble

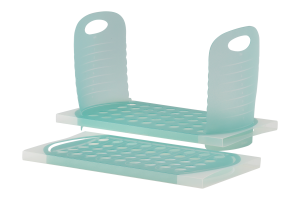

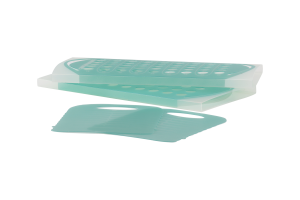

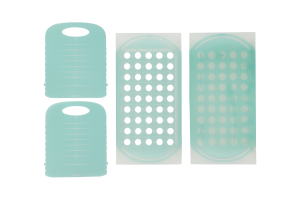

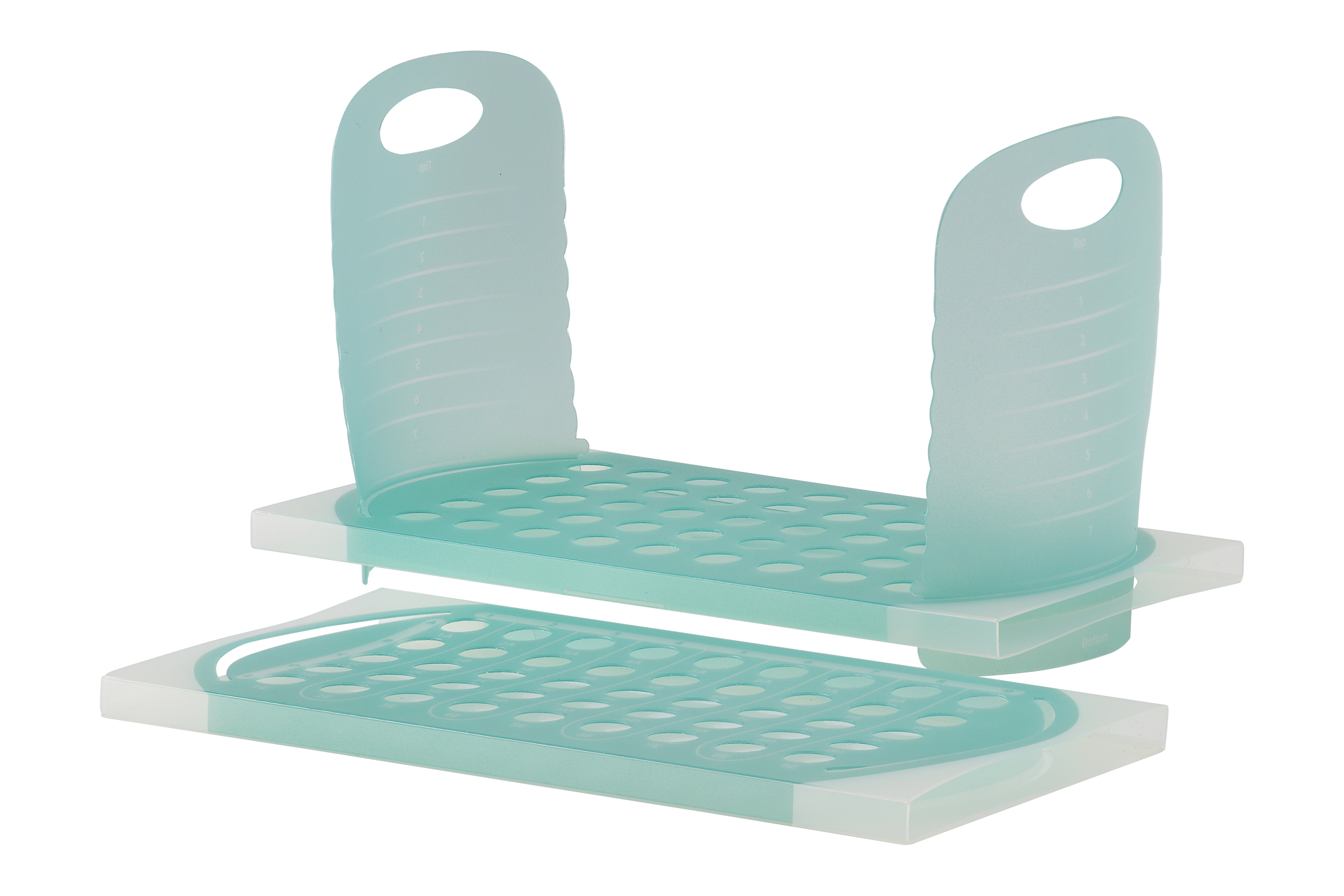

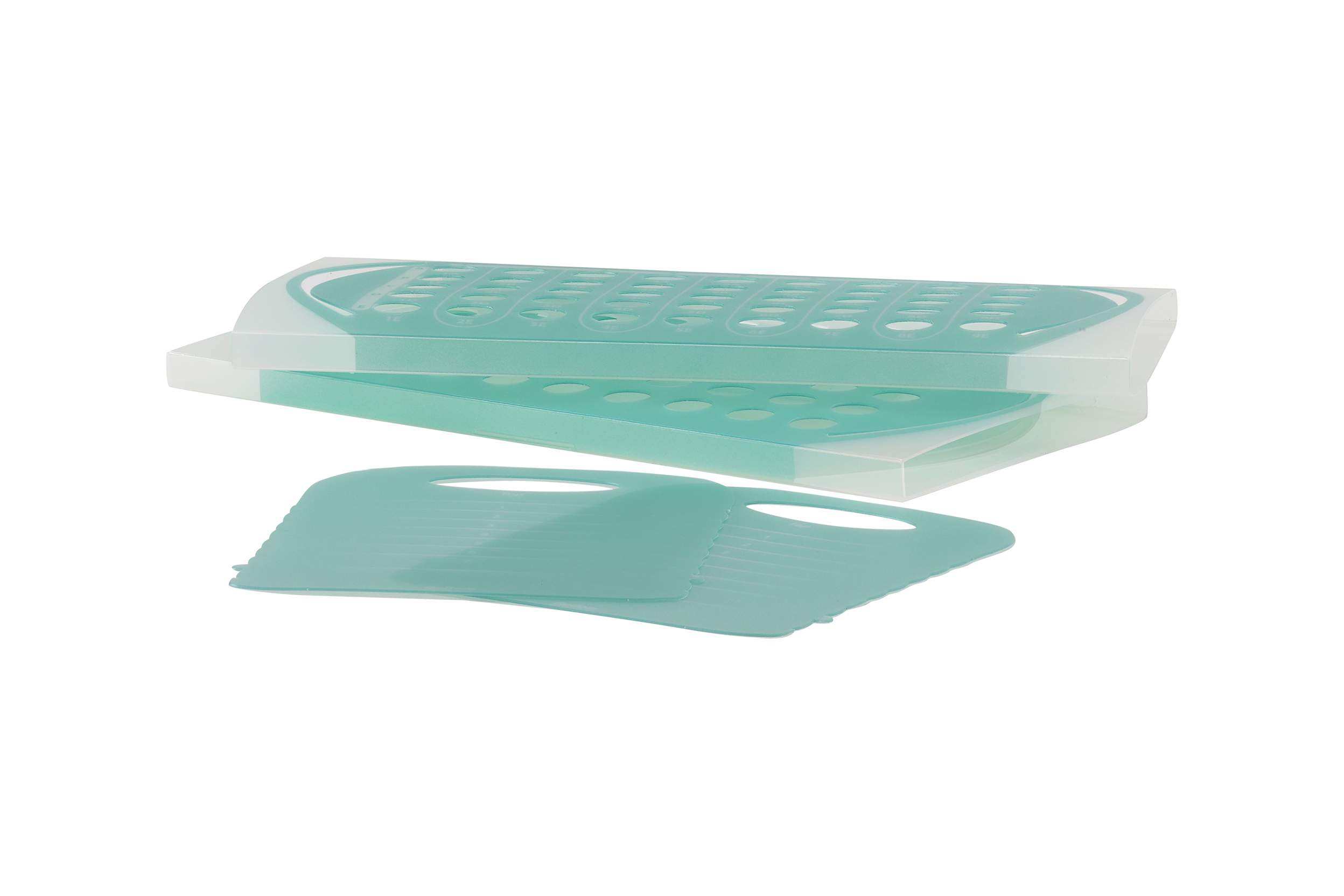

Our Origami Tube Rack is designed to be delivered in a compressed version of 5 test tube racks in one box. We have developed this function in order to reduce shipping cost and reduce the space needed to store the racks in a laboratory. When the Tube holder Rack is retrieved from the box, it simply needs to be assembled. This can be done by anyone.

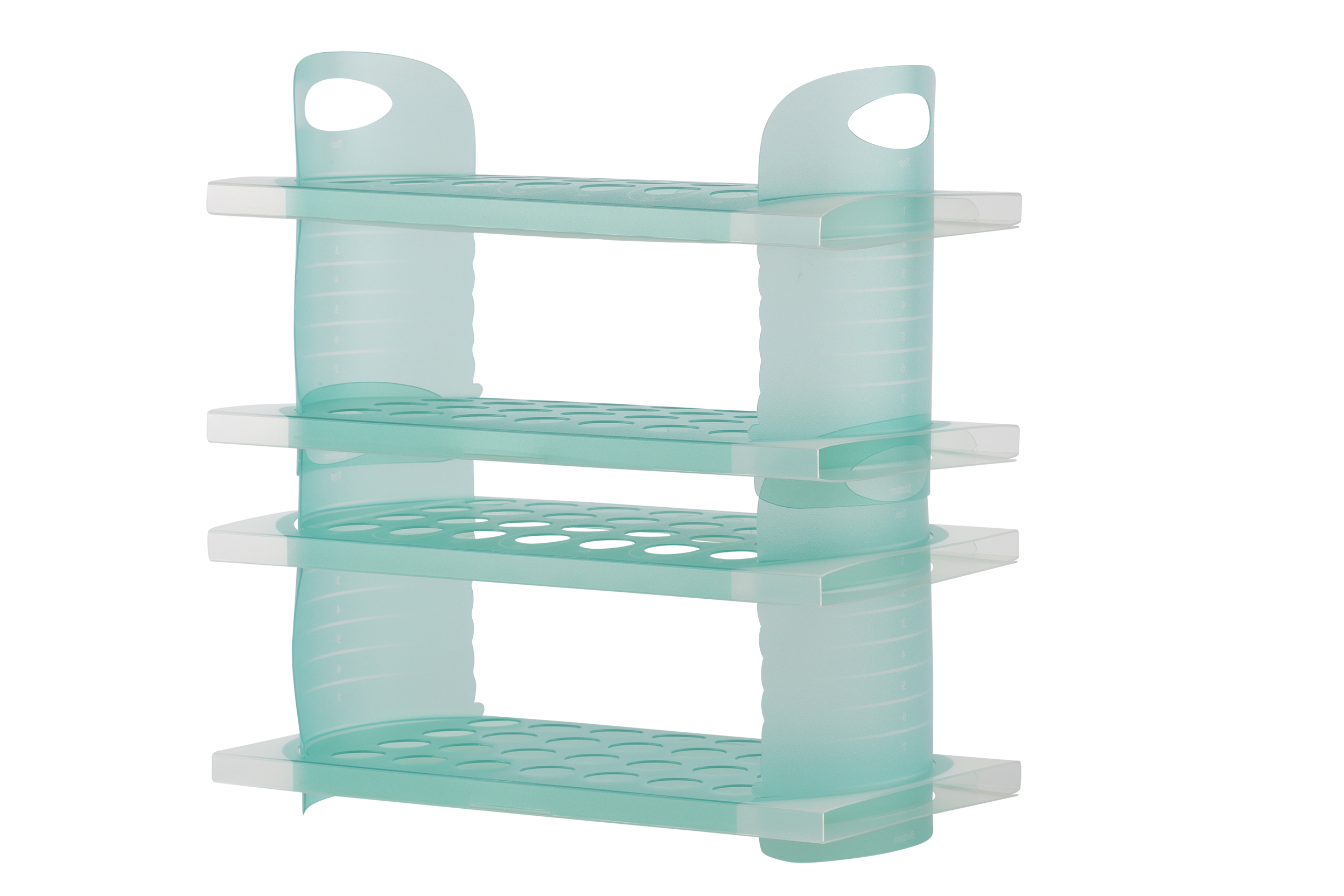

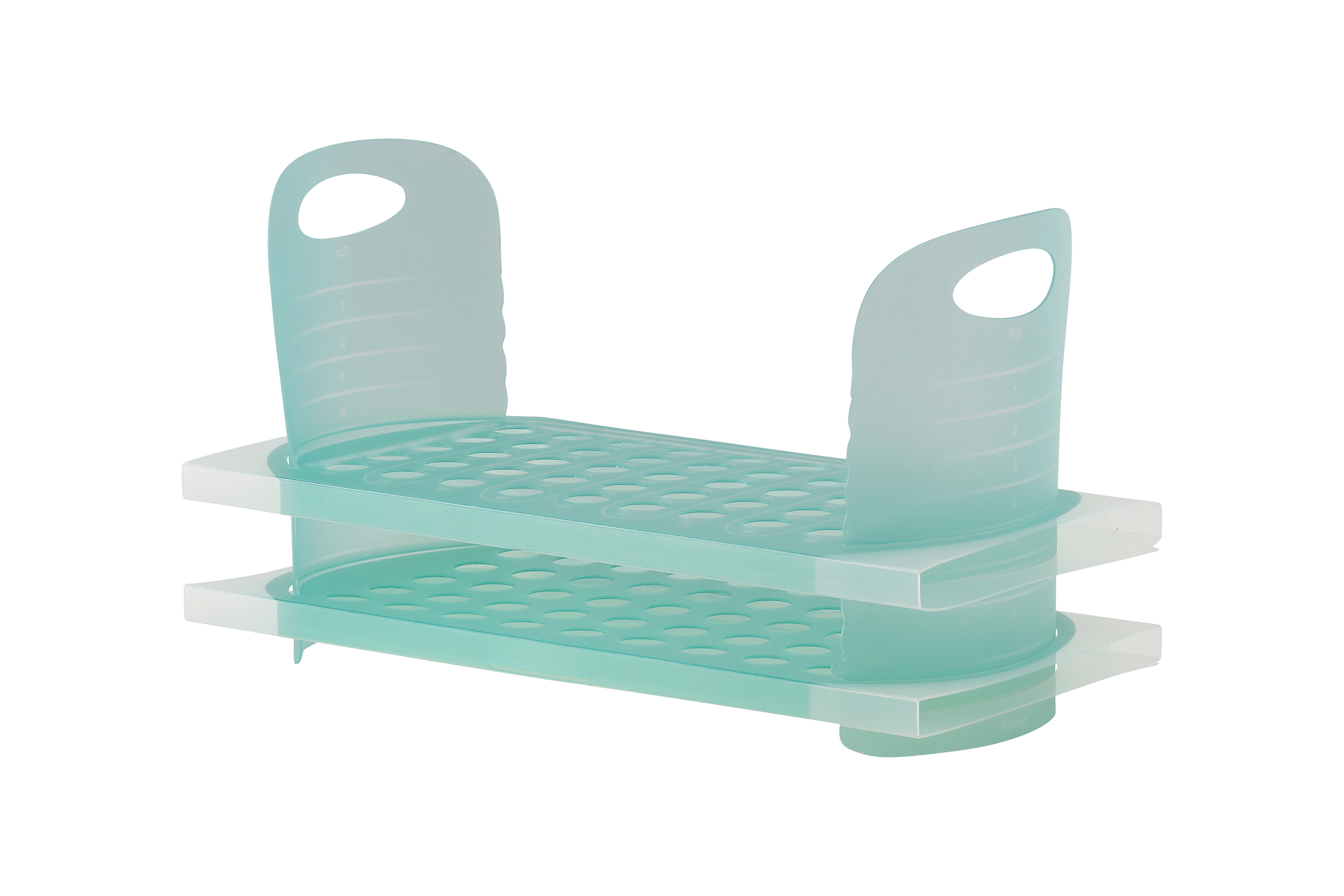

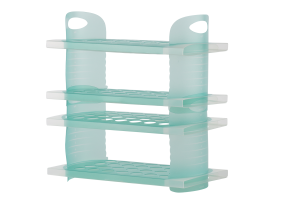

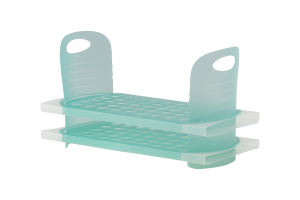

The Origami Test Tube Rack is Adjustable in height

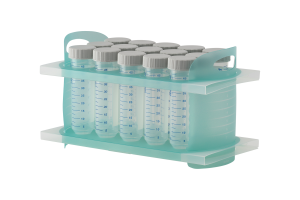

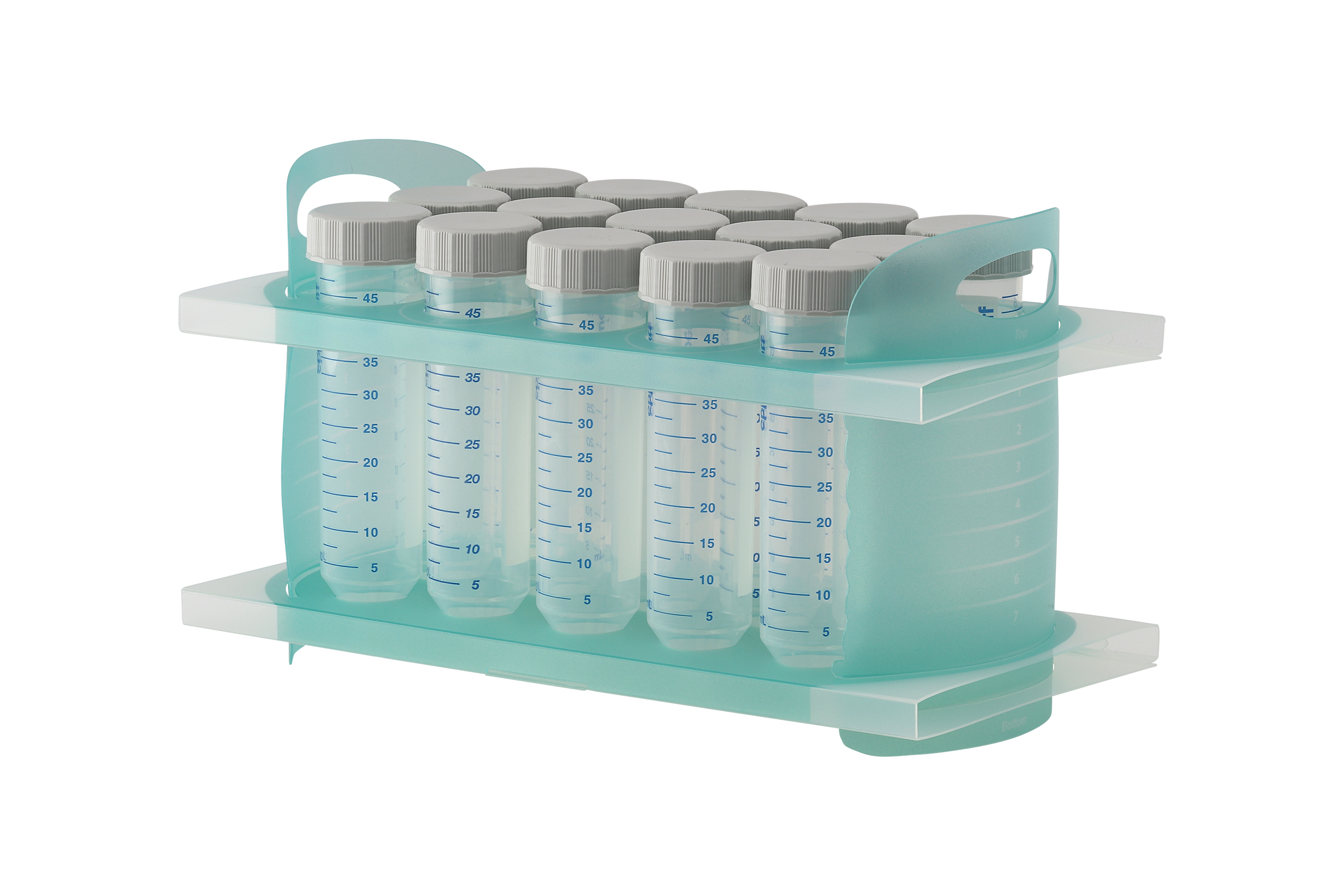

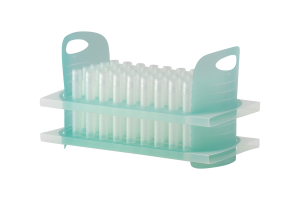

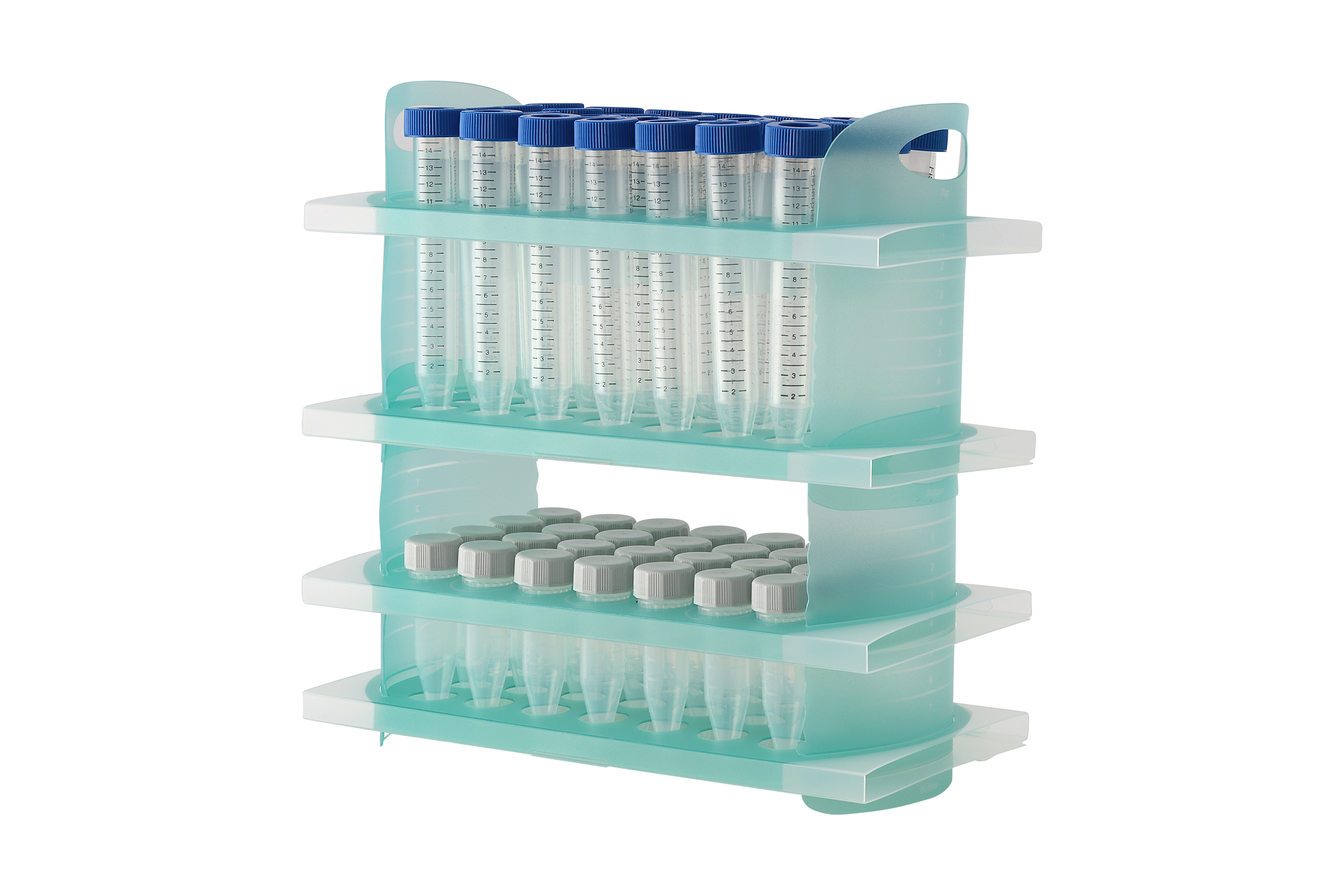

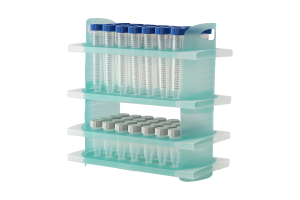

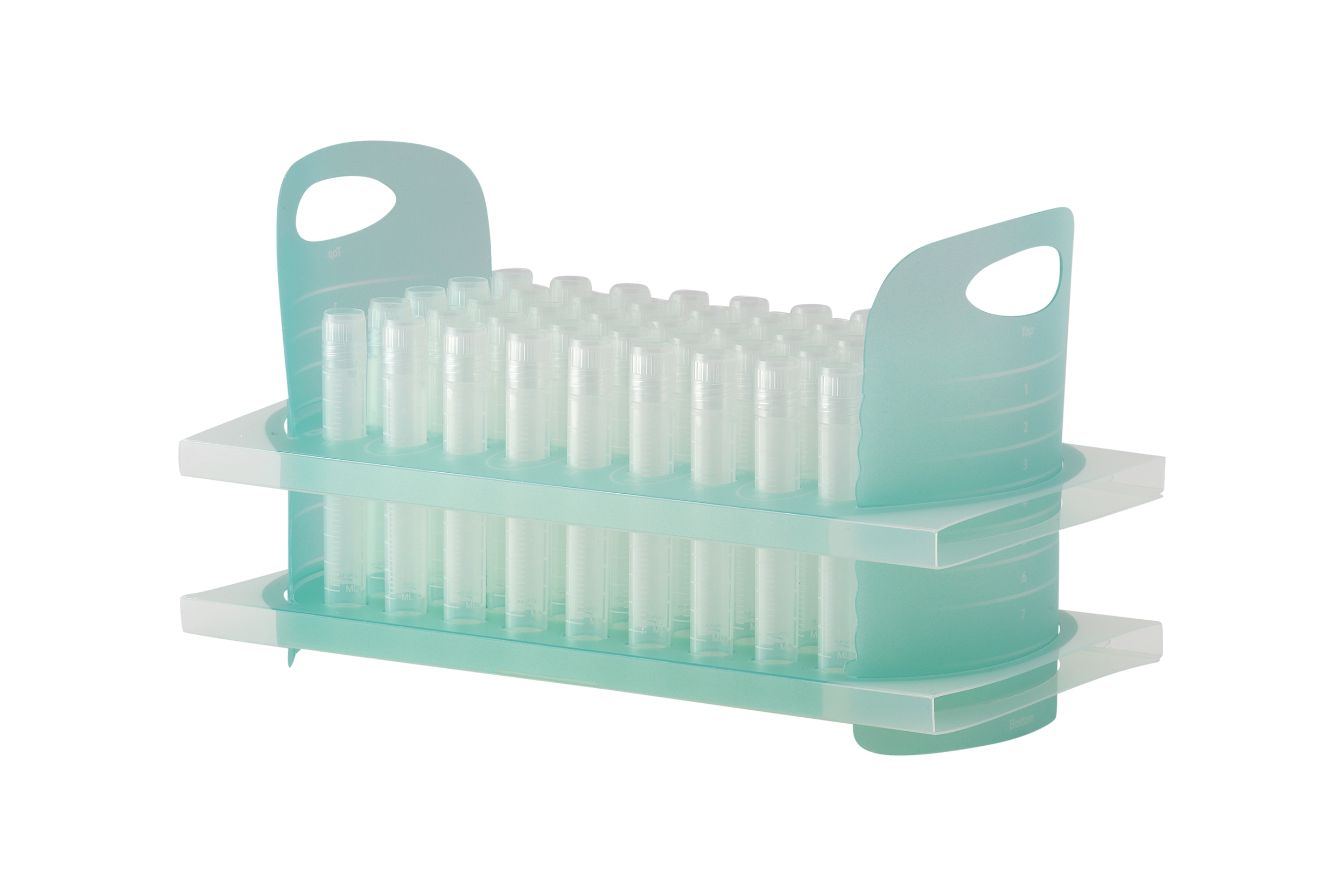

Our TENAK Tube Rack is designed to be adjustable in height which makes it very flexible and usable for almost any test tube on the market. The tube holder racks can be used for everything from microcentrifugetubes, cryovial, over vacutainers, to 15ml and 50ml falcon tubes, all depending on the diameter of the tube hole.

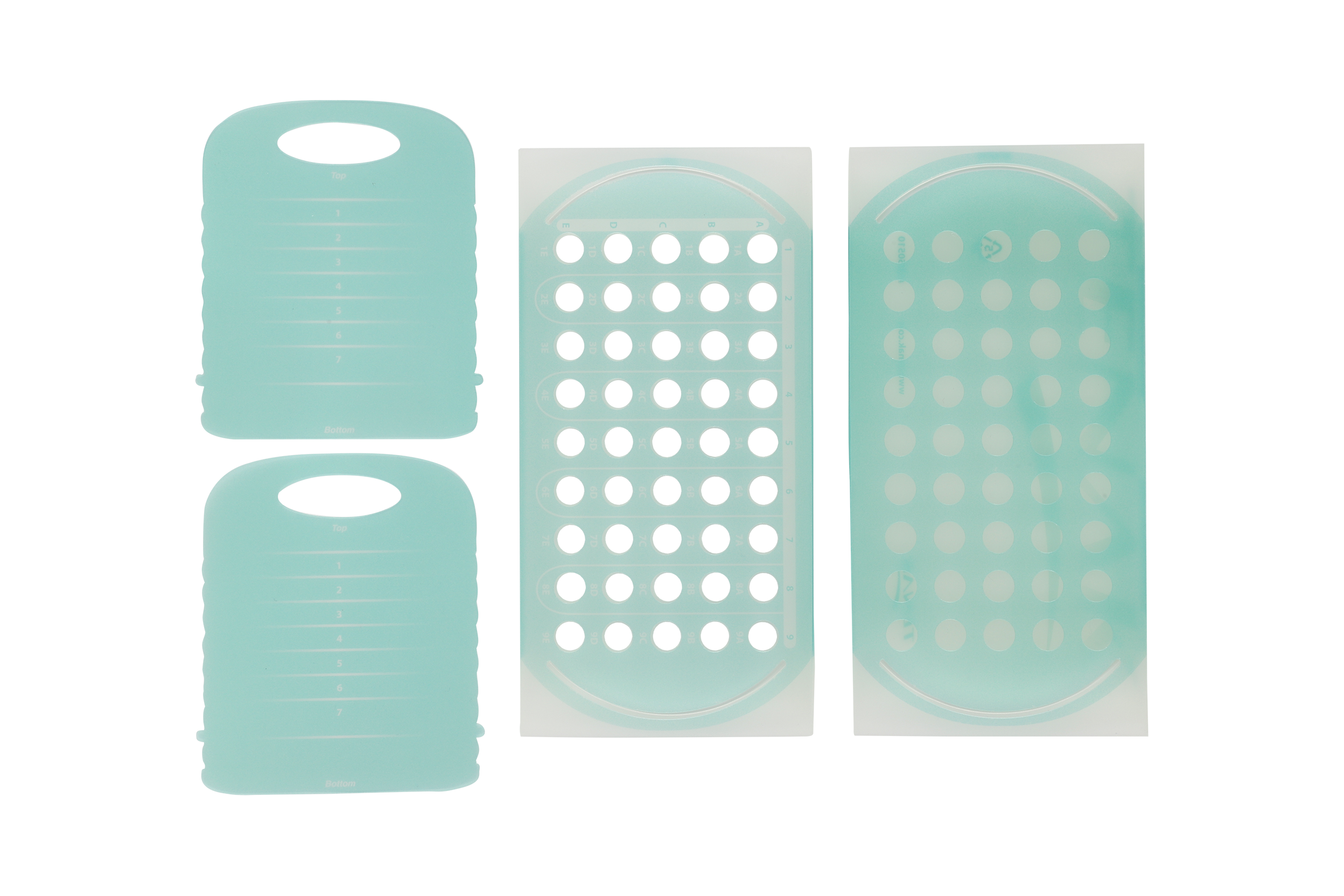

There is a alphanumeric grid printed on each Tube Rack for easy location of the samples.

The Origami Tube Rack is made of polypropylene and be used in temperatures from -45°C to 60°C.

Tube O.D. 12.5 mm to 30 mm
Material Polypropylene
Temperature range -45°C to 60°C
Package 5 units
Article no. Tube O.D. No. of tubes Unit/package
TE50510 12,5 mm 9×5=45 5
TE50530 18 mm 7×4=28 5
TE50550 30 mm 5×3=15 5
