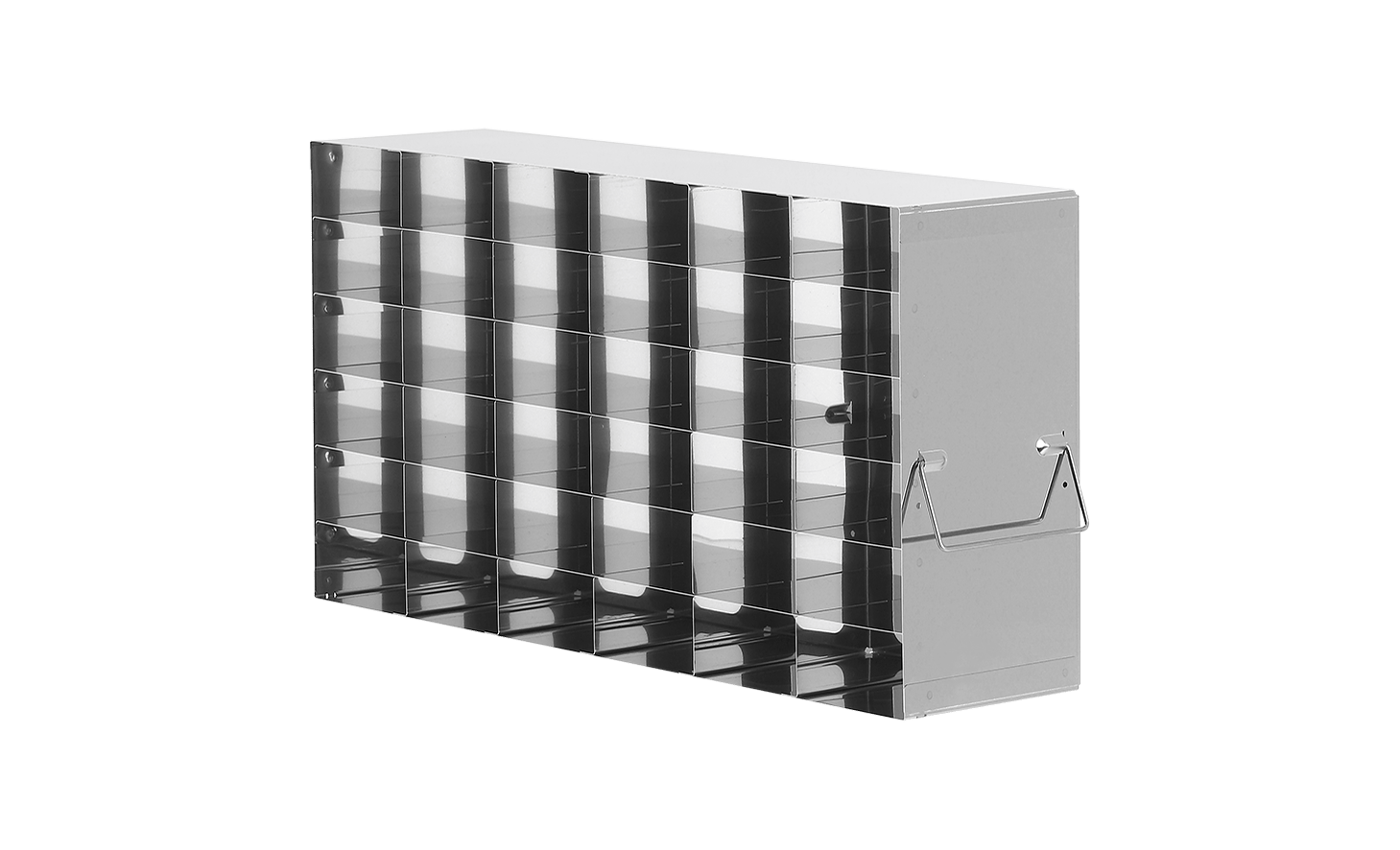

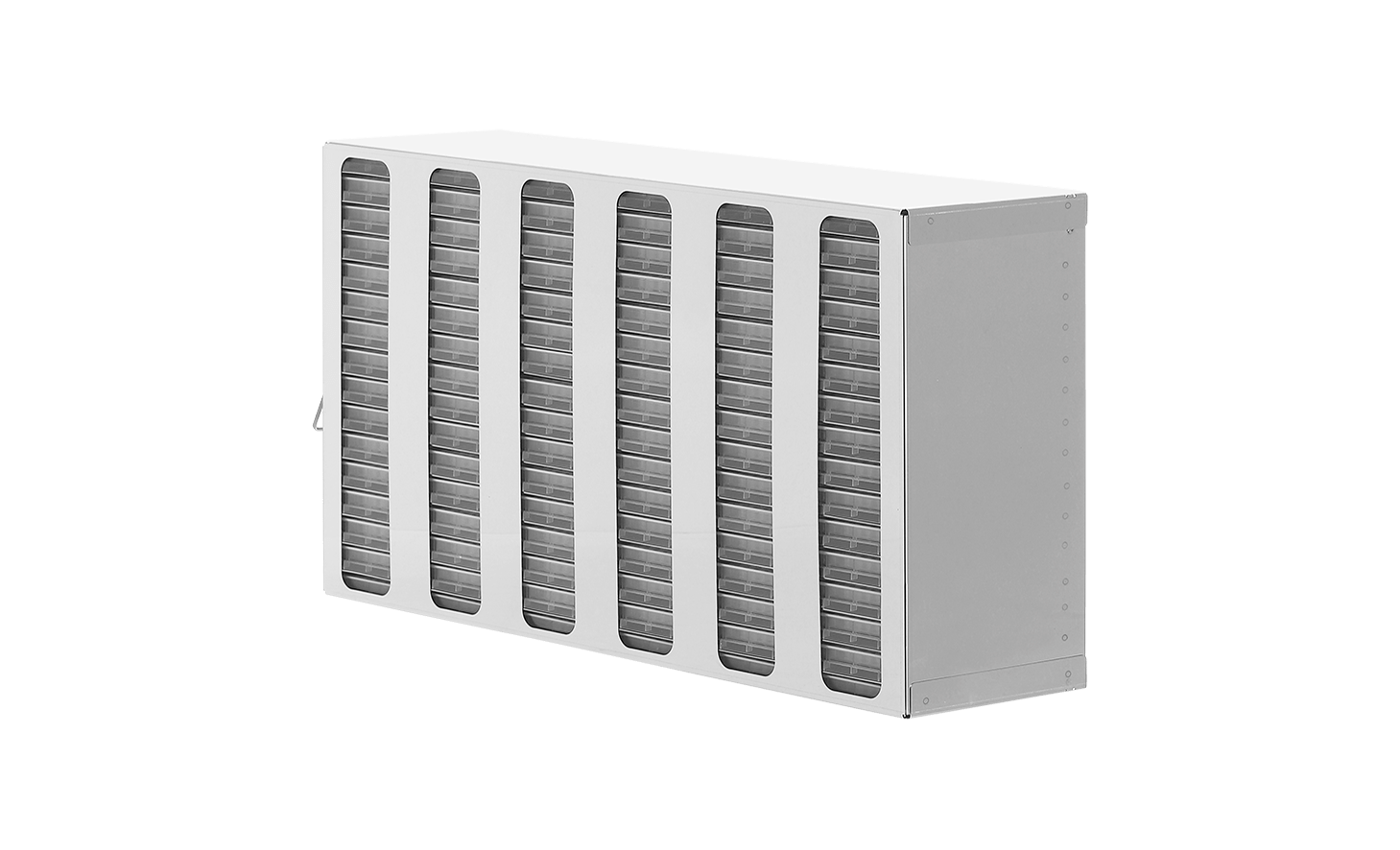

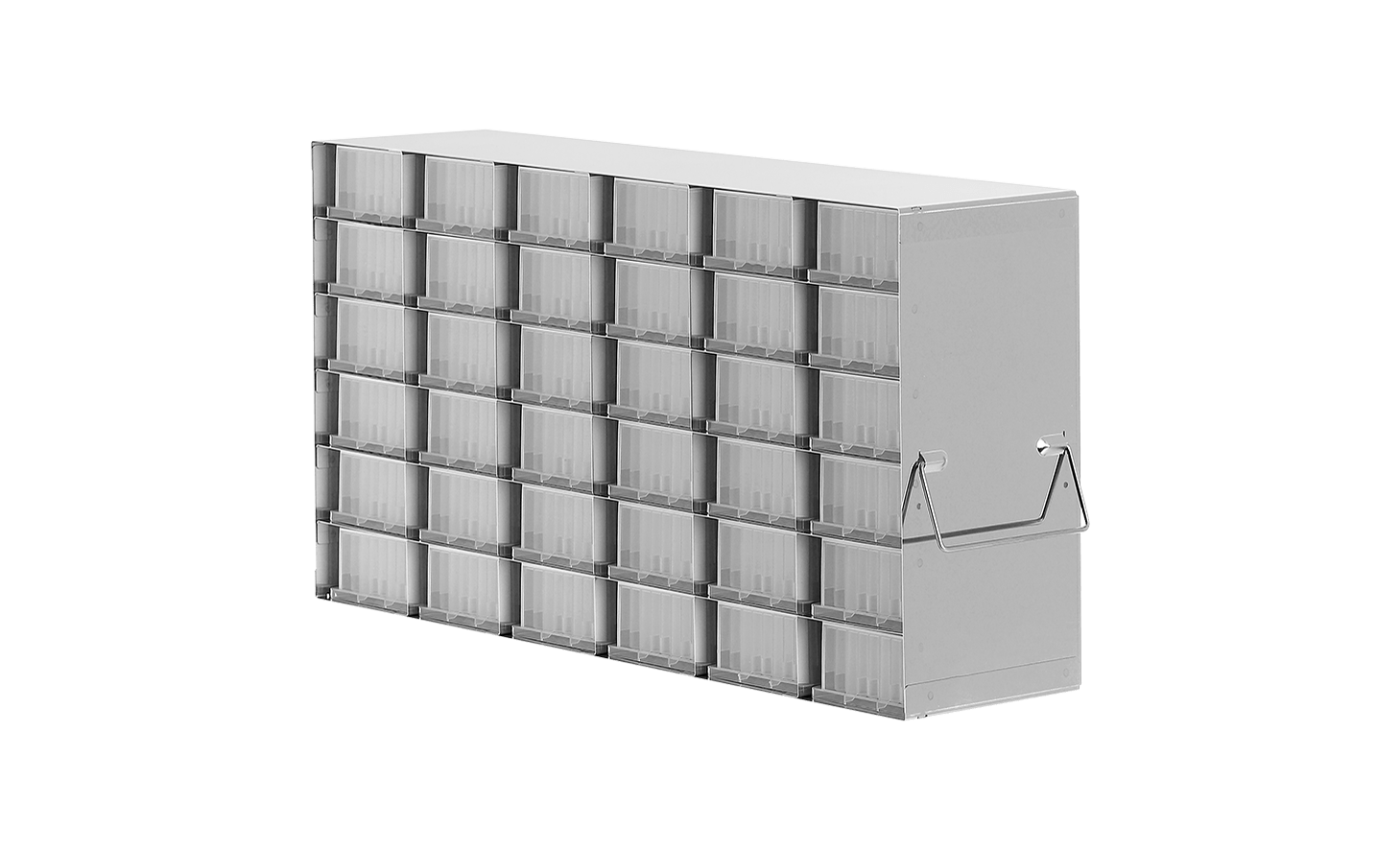

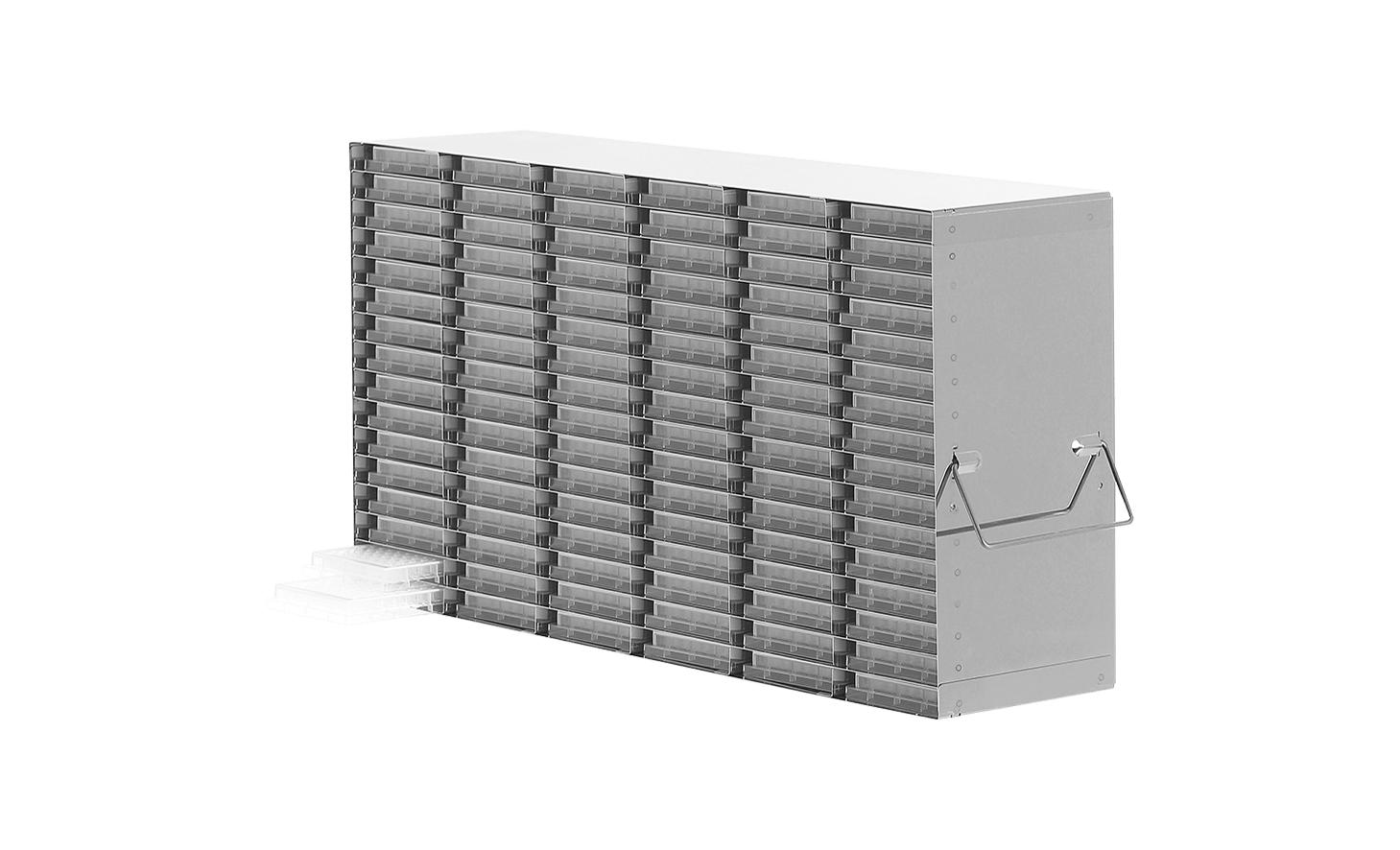

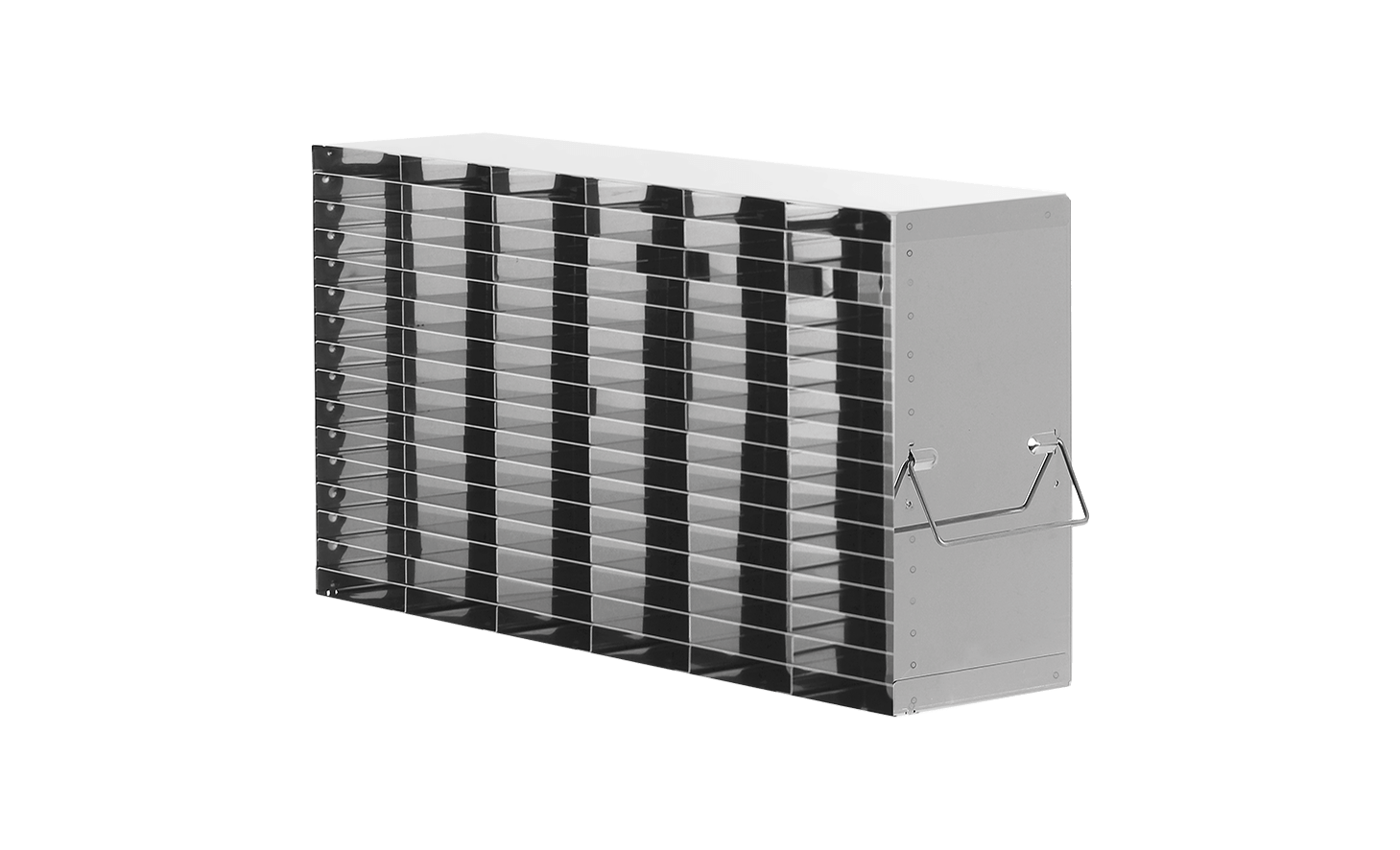

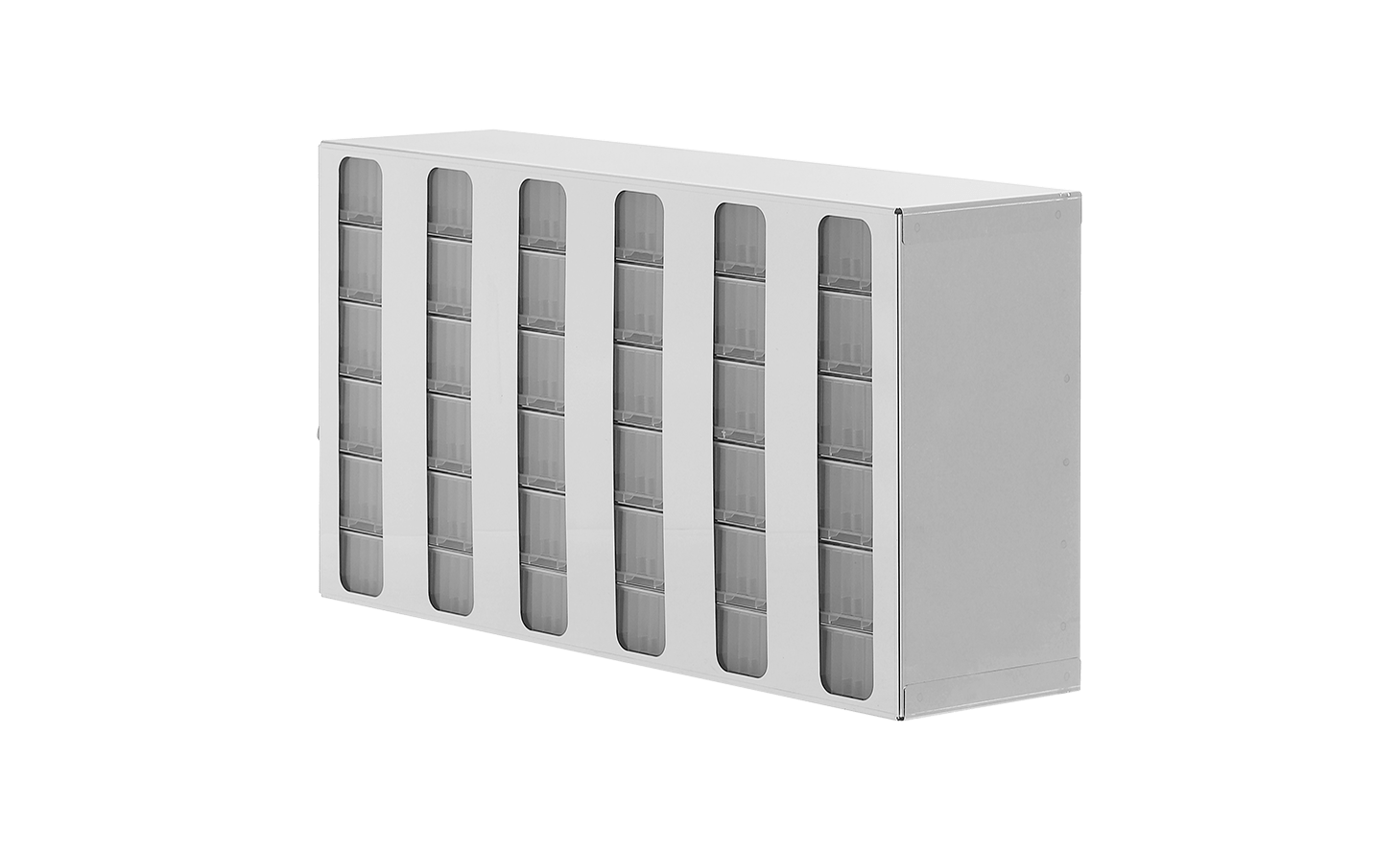

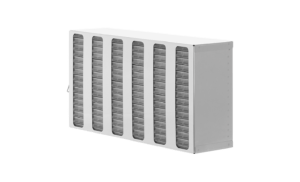

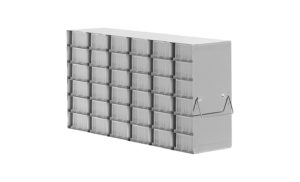

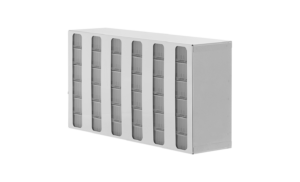

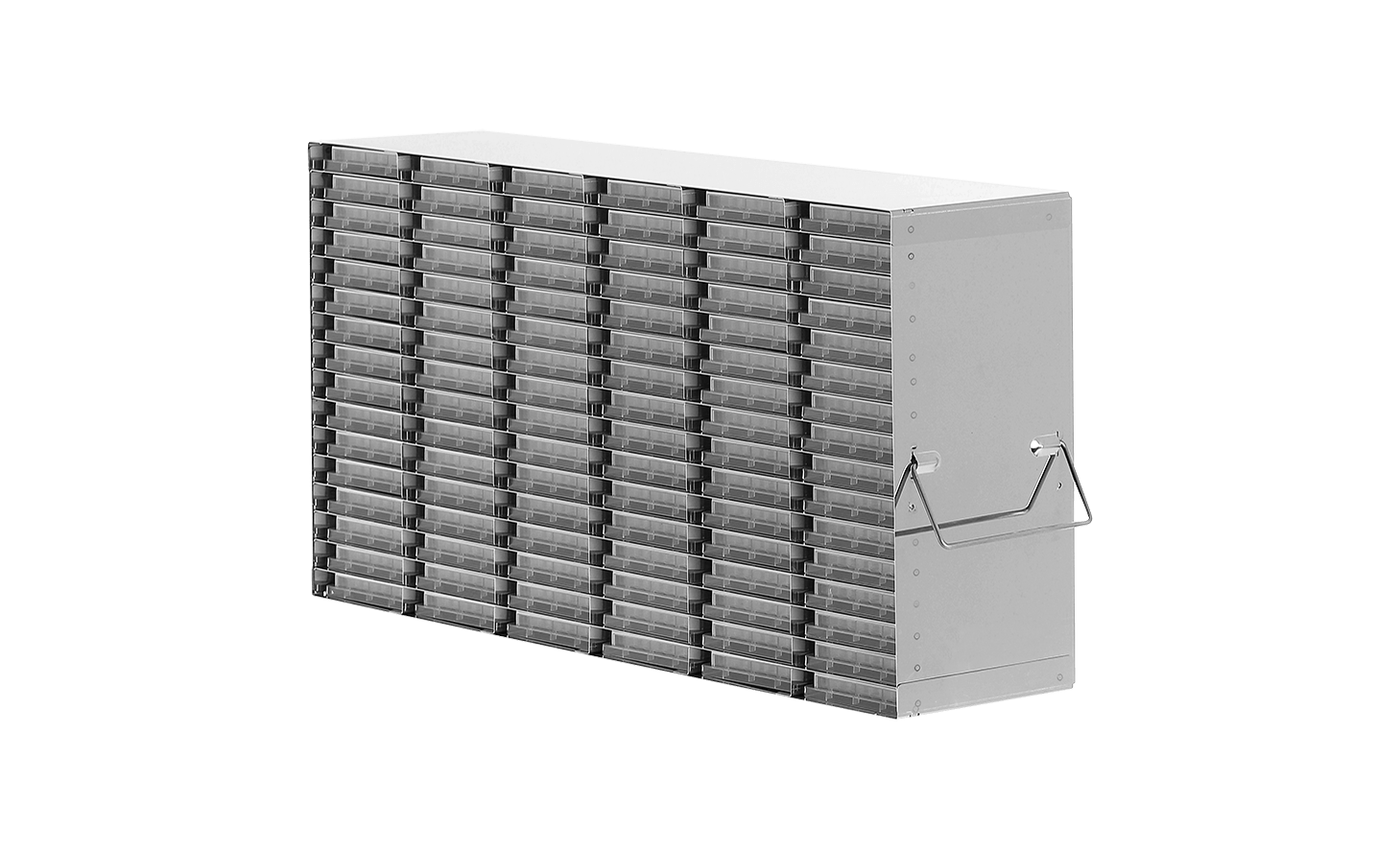

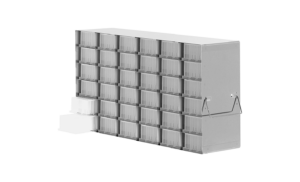

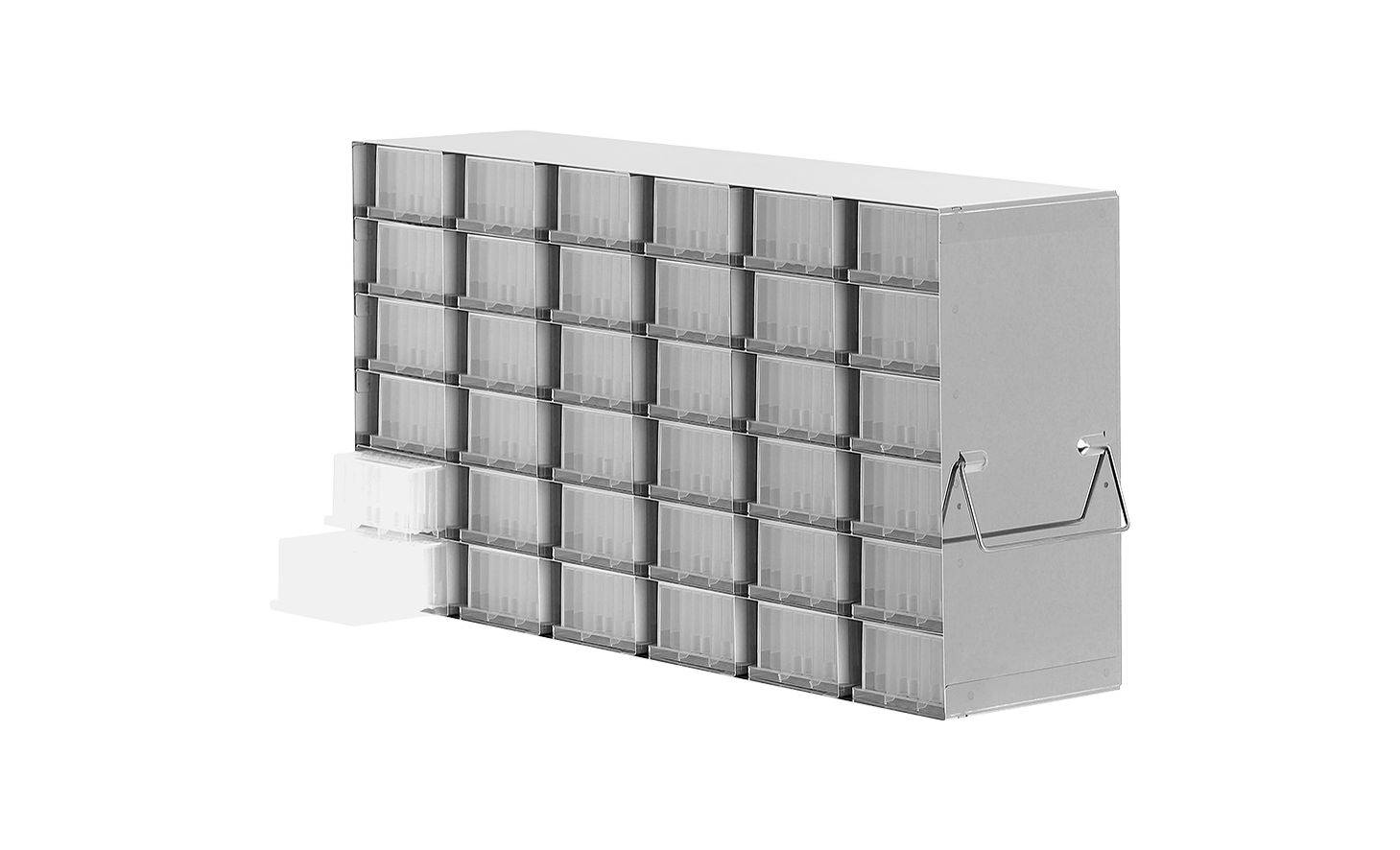

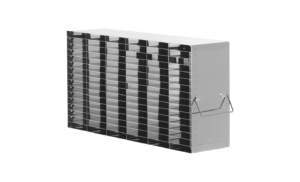

Standard racks for microtiterplate for upright freezers

This is a complete range of racks for microtiterplates for use in upright freezers. Choose from 5 different shelf heights depending on preferences. The racks can either be used as one plate per shelf or the plates can be stacked.
The racks are available with a shelf height of 16 mm, 25 mm, 45 mm, 65 mm and 85 mm. The external width is 135 mm on all racks.

The racks are available in 4 different depths, for 4, 5, 6 or 7 plates in depth.A rack with a shelf height of 65 mm can be used with ex. 1 x 60 mm Matrix plate or 6 x 10 mm 96 microwell plate or 4 x 15mm 96 microwell plate or 2 x 96 deepwell plate. Always make sure that you have measured the exact height of the plate you want to store. Our racks are compatible with all freezer models. The racks are made of stainless steel.

Read more about our Usability explanation and product comparison.

loader-icon
Article no. Shelf height HxDxW mm No. of shelves
TE27400 16 mm 158x360x135 9x4 = 36
TE27402 16 mm 228x360x135 13x4 = 52
TE27404 16 mm 280xx360x135 16x4 = 64
TE27406 16 mm 298x360x135 17x4 = 68
TE27450 16 mm 158x450x135 9x5 = 45
TE27452 16 mm 228x450x135 13x5 = 65
TE27454 16 mm 280xx450x135 16x5 = 80
TE27456 16 mm 333x450x135 19x5 = 95
TE27458 16 mm 391x450x135 23x5 = 115
TE27520 16 mm 158x540x135 9x6 = 54
TE27522 16 mm 228x540x135 13x6 = 78
TE27524 16 mm 280xx540x135 16x6 = 96
TE27526 16 mm 333x540x135 19x6 = 114
Article no. Shelf height HxDxW mm No. of shelves
TE27410 25 mm 163x360x135 6x4 = 24
TE27412 25 mm 217x360x135 8x4 = 32
TE27414 25 mm 271x360x135 10x4 = 40
TE27416 25 mm 325x360x135 12x4 = 44
TE27460 25 mm 163x450x135 6x5 = 30
TE27462 25 mm 217x450x135 8x5 = 40
TE27464 25 mm 271x450x135 10x5 = 50
TE27466 25 mm 325x450x135 12x5 = 60
TE27468 25 mm 371x450x135 14x5 = 70
TE27470 25 mm 406x450x135 15x5 = 75
TE27530 25 mm 163x540x135 6x6 = 36
TE27532 25 mm 217x540x135 8x6 = 48
TE27534 25 mm 271x540x135 10x6 = 60
TE27536 25 mm 325x540x135 12x6 = 72
TE27580 25 mm 163x630x135 6x7 = 42
TE27582 25 mm 217x630x135 8x7 = 56
TE27584 25 mm 271x630x135    10x7 = 70
TE27586 25 mm 325x630x135    12x7 = 84
Article no. Shelf height HxDxW mm No. of shelves
TE27420 45 mm 142x360x135 3x4 = 12
TE27422 45 mm 189x360x135 4x4 = 16
TE27424 45 mm 236x360x135 5x4 = 20
TE27426 45 mm 283x360x135 6x4 = 24
TE27480 45 mm 142x450x135 3x5 = 15
TE27482 45 mm 189x450x135 4x5 = 20
TE27484 45 mm 236x450x135 5x5 = 25
TE27486 45 mm 283x450x135 6x5 = 30
TE27488 45 mm 330x450x135 7x5 = 35
TE27490 45 mm 372x450x135 8x5 = 40
TE27540 45 mm 142x540x135 3x6 = 18
TE27542 45 mm 189x540x135 4x6 = 24
TE27544 45 mm 236x540x135 5x6 = 30
TE27546 45 mm 283x540x135 6x6 = 36
TE27548 45 mm 330x540x135 7x6 = 42
TE27590 45 mm 142x630x135 3x7 = 21
TE27592 45 mm 189x630x135 4x7 = 28
TE27594 45 mm 236x630x135 5x7 = 35
TE27596 45 mm 283x630x135 6x7 = 42
TE27598 45 mm 330x630x135 7x7 = 49
Article no. Shelf height HxDxW mm No. of shelves
TE27430 65 mm 135x360x135 2x4 = 8
TE27432 65 mm 202x360x135 3x4 = 12
TE27434 65 mm 269x360x135 4x4 = 16
TE27500 65 mm 135x450x135 2x5 = 10
TE27502 65 mm 202x450x135 3x5 = 15
TE27504 65 mm 269x450x135 4x5 = 20
TE27506 65 mm 336x450x135 5x5 = 25
TE27508 65 mm 403x450x135 6x5 = 30
TE27550 65 mm 135x540x135 2x6 = 12
TE27552 65 mm 202x540x135 3x6 = 18
TE27554 65 mm 269x540x135 4x6 = 24
TE27556 65 mm 336x540x135 5x6 = 30
TE27558 65 mm 403x540x135 6x6 = 36
Article no. Shelf height HxDxW mm No. of shelves
TE27440 85 mm 175x360x135 2x4 = 8
TE27442 85 mm 262x360x135 3x4 = 12
TE27510 85 mm 175x450x135 2x5 = 10
TE27512 85 mm 262x450x135 3x5 = 15
TE27514 85 mm 349x450x135 4x5 = 20
TE27560 85 mm 175x540x135 2x6 = 12
TE27562 85 mm 262x540x135 3x6 = 18
TE27564 85 mm 349x540x135 4x6 = 24
TE27610 85 mm 175x630x135 2x7 = 14
TE27612 85 mm 262x630x135 3x7 = 21
TE27614 85 mm 349x630x135 4x7 = 28
