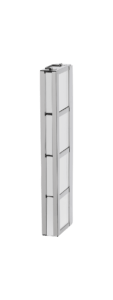

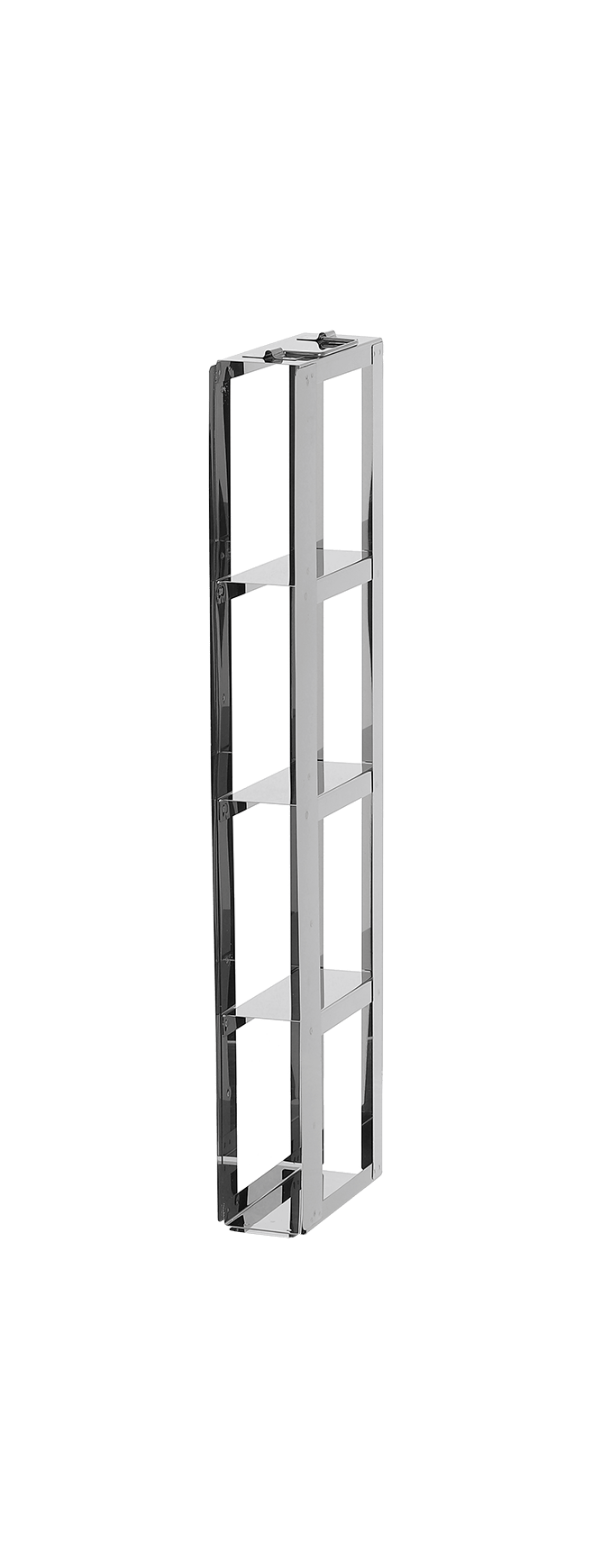

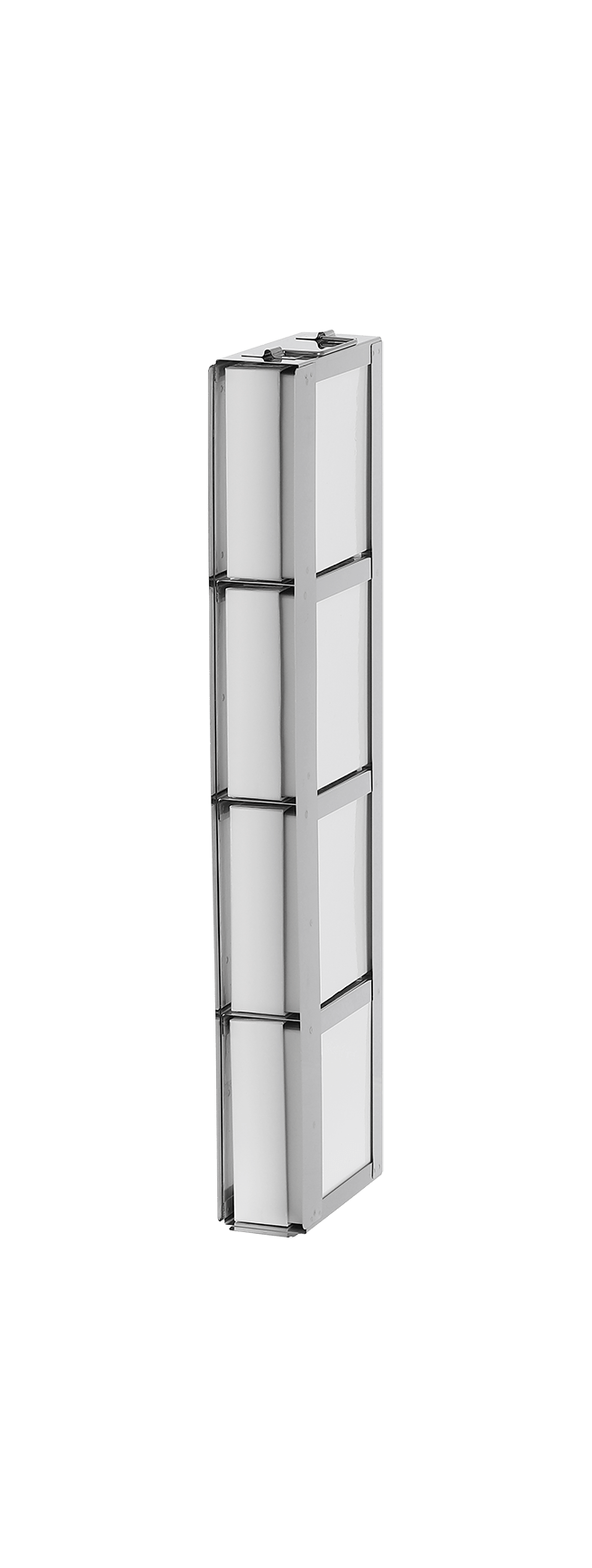

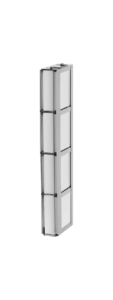

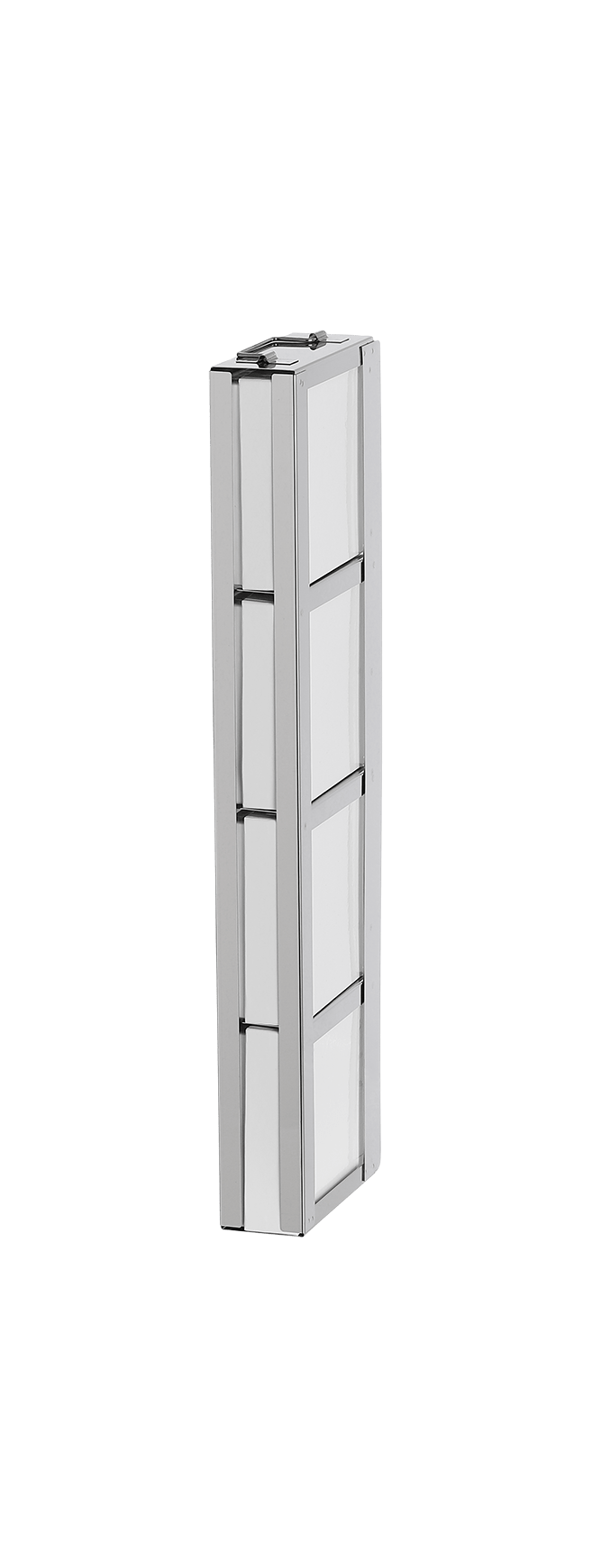

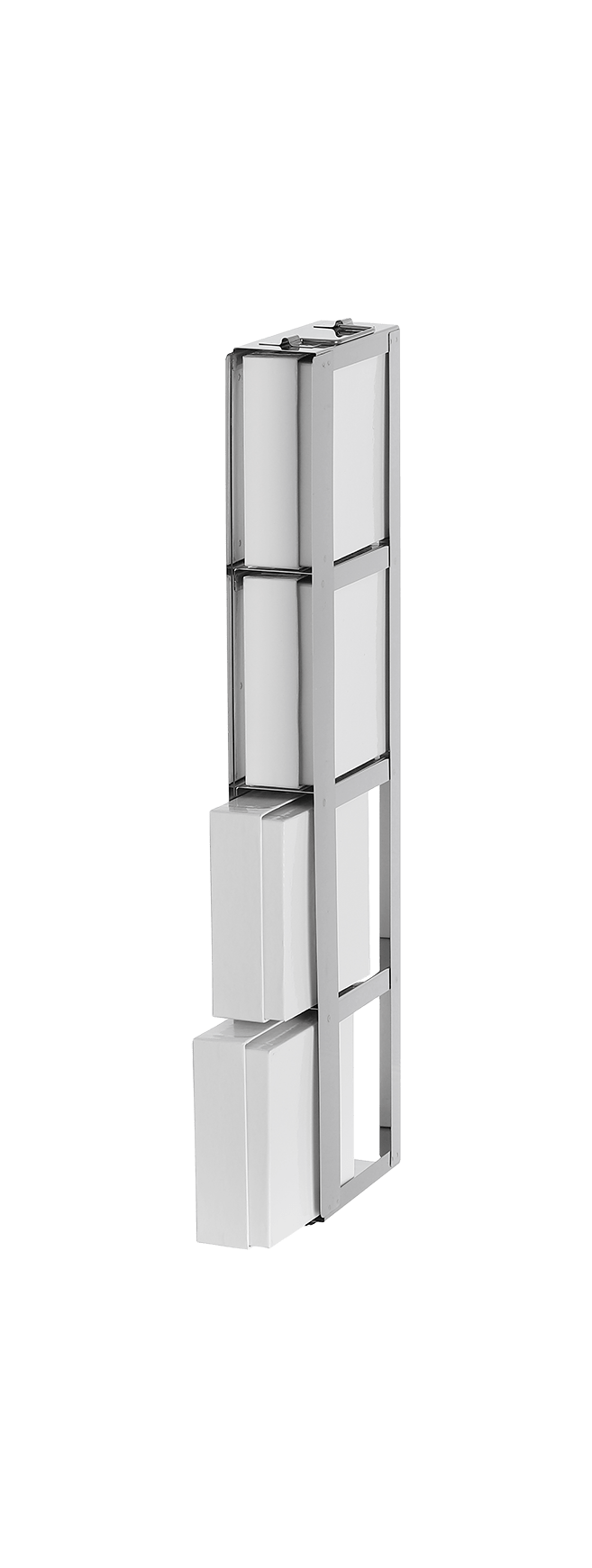

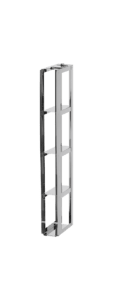

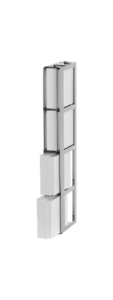

Side Up Rack for upright freezers

The vertical rack for upright freezers is designed be a rack for spare space to fill up spare space in laboratory freezers, which will result in less energy consumption, because the laboratory freezer will have less room for warm air every time you open the freezer door. The majority of the energy your freezer uses goes towards cooling down the air that comes in when you use the freezer. Our TENAK Side Up Rack will therefore save you energy and money, because you exploit the remaining space in the laboratory freezer.

As mentioned above the rack for spare space is used in the laboratory freezer after fitting the standard sized racks. In order to use this space we have designed these Side Up Racks where the boxes are turned vertical. The laboratory freezer racks will fit into a gap of minimum 37 mm for the 32 mm boxes and 57 mm for the 50 mm boxes.

The vertical racks will fit into any upright freezer where there are empty space to exploit. The racks can be stacked in an upright freezer and are secured with a sleeve when they are stacked.

The racks can be used with cryoboxes with a footprint of max. 136×136 mm.

The racks are made of stainless steel.

Article no. Box height HxDxW mm No. of boxes
TE21390 32 mm 140x420x36 3
TE21391 32 mm 140x556x36 4
TE21392 32 mm 140x695x36 5
Article no. Box height HxDxW mm No. of boxes
TE21394 50 mm 140x420x56 3
TE21395 50 mm 140x556x56 4
TE21396 50 mm 140x695x56 5
