Standard rack for MTP for chest freezers

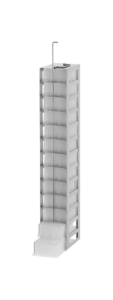

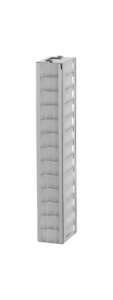

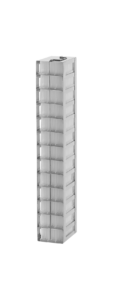

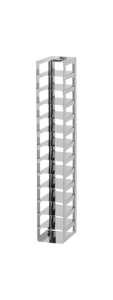

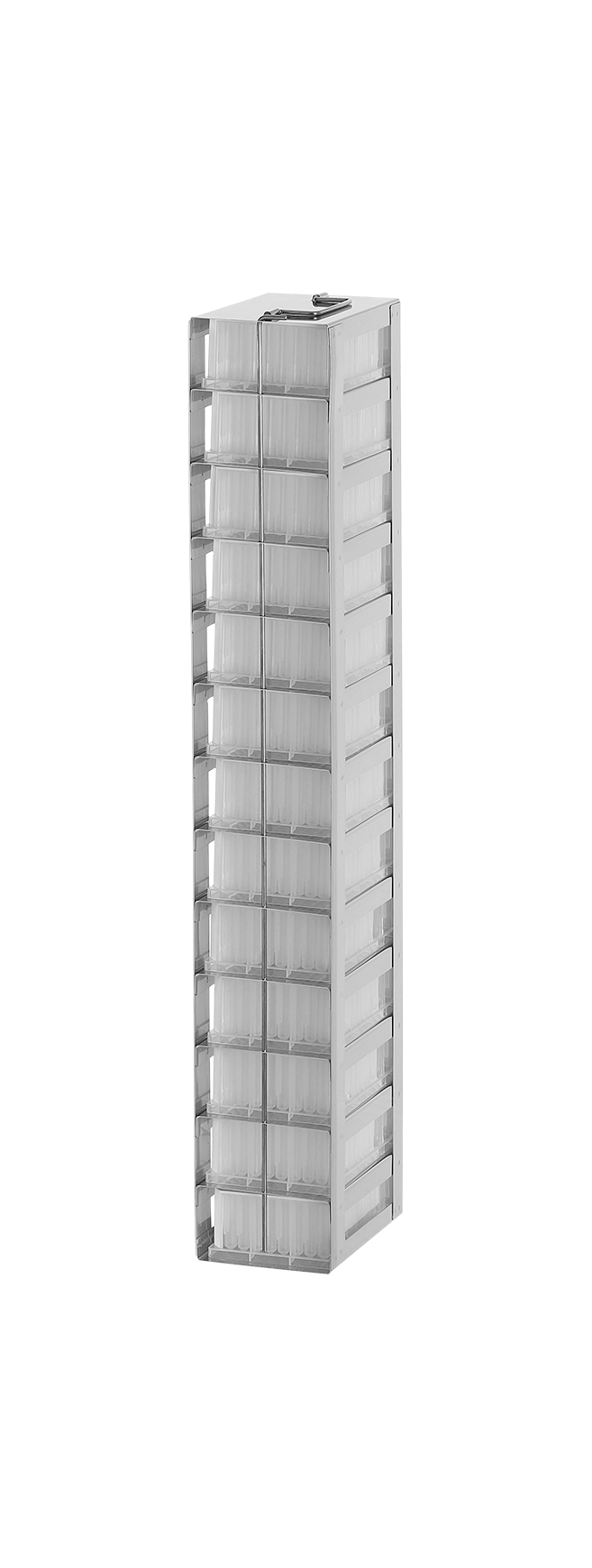

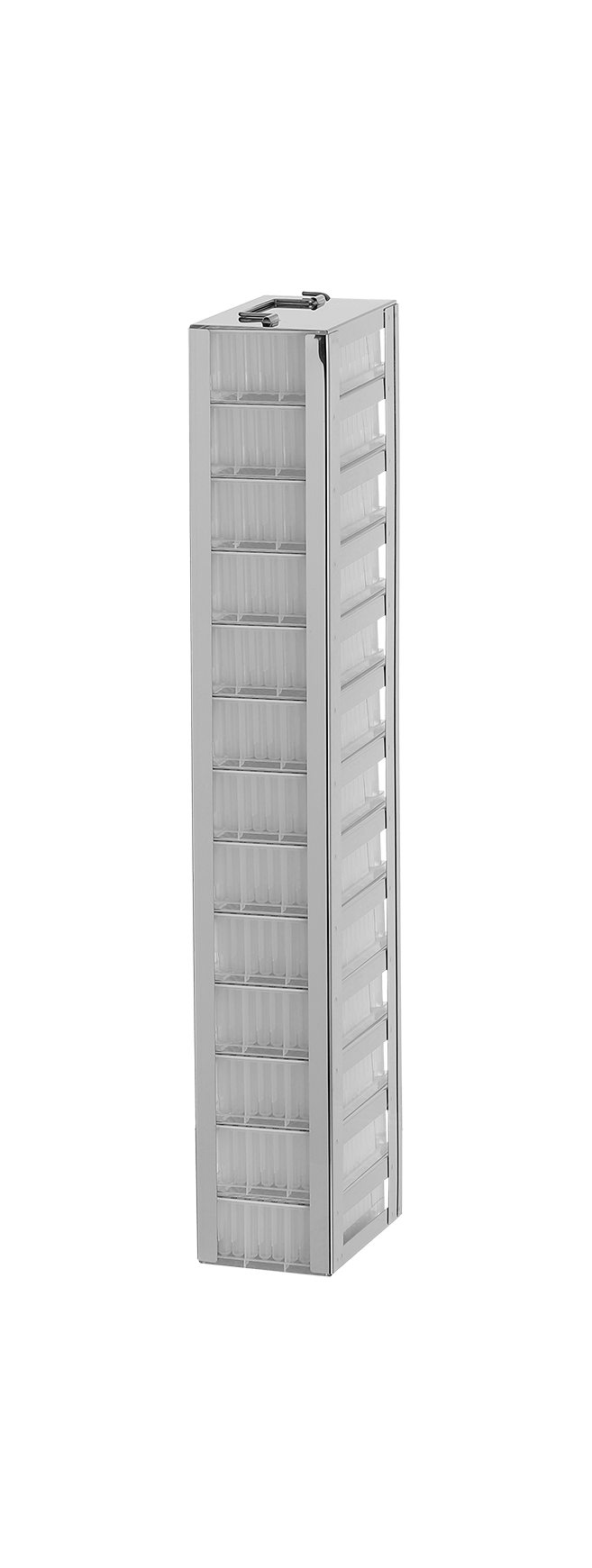

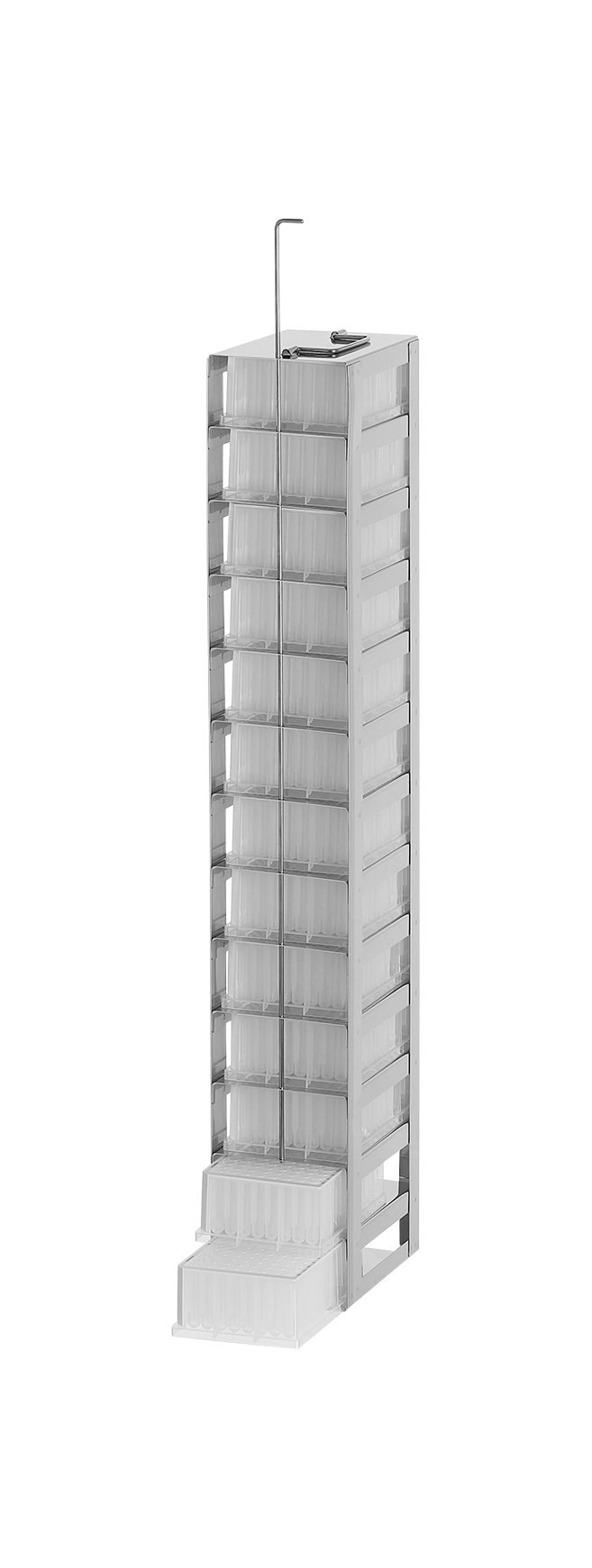

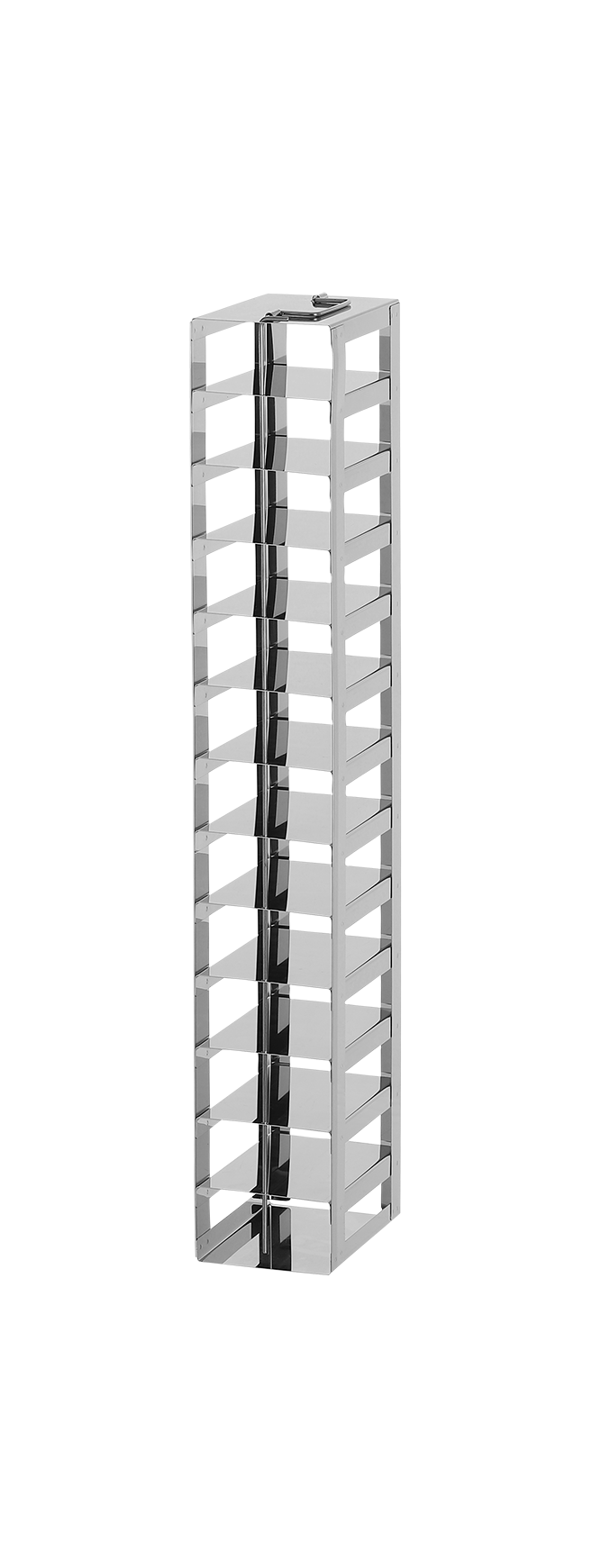

Our Standard Rack for MTP or SBS format plate racks is equipped with a locking rod to secure the SBS format plate. This is a complete range of racks for microtiterplates for use in chest freezers. Choose from 5 different shelf heights depending on preferences. The racks can either be used as one plate per shelf or the plates can be stacked.

Different shelf heights for the Standard Rack for MTP or SBS format plate racks

The racks are available with a shelf height of 16 mm, 25 mm, 45 mm, 65 mm and 85 mm. The external footprint is 135×92 mm on all racks.

A rack with a shelf height of 65 mm can be used with ex. 1 x 60 mm Matrix plate or 6 x 10mm 96 microwell plate or 4 x 15mm 96 microwell plate or 2 x 96 deepwell plate. Always make sure that you have measured the exact height of the plate you want to store.

Our Standard Rack for MTP or SBS format plate racks is compatible with all freezer models. The racks are made of stainless steel.

Read more about our Usability explanation and product comparison.

loader-icon
Article no. Shelf height HxDxW mm No. of shelves
TE27100 16 mm 276x135x92 16
TE27102 16 mm 327x135x92 19
TE27104 16 mm 378x135x92 22
TE27106 16 mm 446x135x92 26
TE27108 16 mm 497x135x92 29
TE27110 16 mm 548x135x92 32
TE27112 16 mm 599x135x92 35
TE27114 16 mm 667x135x92 39
TE27116 16 mm 718x135x92 42
Article no. Shelf height HxDxW mm No. of shelves
TE27130 25 mm 296x135x92 11
TE27132 25 mm 349x135x92 13
TE27134 25 mm 402x135x92 15
TE27136 25 mm 455x135x92 17
TE27138 25 mm 508x135x92 19
TE27140 25 mm 561x135x92 21
TE27142 25 mm 614x135x92 23
TE27144 25 mm 667x135x92 25
TE27146 25 mm 720x135x92 27
Article no. Shelf height HxDxW mm No. of shelves
TE27160 45 mm 283x135x92 6
TE27162 45 mm 330x135x92 7
TE27164 45 mm 376x135x92 8
TE27166 45 mm 423x135x92 9
TE27168 45 mm 469x135x92 10
TE27170 45 mm 516x135x92 11
TE27172 45 mm 562x135x92 12
TE27174 45 mm 609x135x92 13
TE27176 45 mm 655x135x92 14
TE27178 45 mm 702x135x92 15
TE27180 45 mm 748x135x92 16
Article no. Shelf height HxDxW mm No. of shelves
TE27190 65 mm 270x135x92 4
TE27192 65 mm 337x135x92 5
TE27194 65 mm 403x135x92 6
TE27196 65 mm 470x135x92 7
TE27198 65 mm 536x135x92 8
TE27200 65 mm 603x135x92 9
TE27202 65 mm 669x135x92 10
TE27204 65 mm 736x135x92 11
Article no. Shelf height HxDxW mm No. of shelves
TE27210 85 mm 264x135x92 3
TE27212 85 mm 350x135x92 4
TE27214 85 mm 437x135x92 5
TE27216 85 mm 523x135x92 6
TE27218 85 mm 610x135x92 7
TE27220 85 mm 696x135x92 8
